Patek Philippe Ref. 5470P 1/10th Replica Watches

Cheap Patek Philippe Replica has dropped an unexpected technical bombshell – the ref. 5470P – its first-ever 1/10th second single-pusher chronograph that measures and displays 1/10th of a second with a new 5Hz movement.It is also a high-performance chronograph that is packed with solutions to address the shortcomings inherent in a horizontally coupled mechanism and is further bolstered by the full suite of Patek Philippe’s Advanced Research department most cutting-edge innovations.

CH 29-535 PS 1/10 Movement

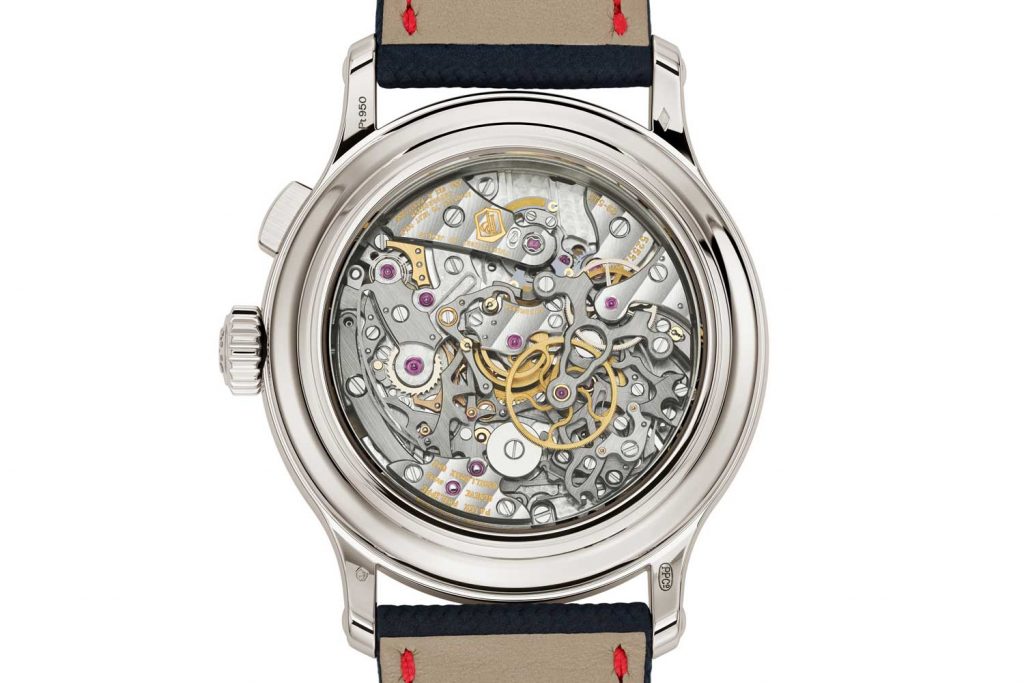

It is characterized by highly traditional architecture – manually wound, column-wheel control, horizontally coupled. Most notably, the Patek Philippe Replica Watches calibre CH 29-535 PS features an instantaneously jumping minute counter thanks to a patented perforated minute cam with a slot at the end, a skeletonized lever and a coiled spring to advance the minute counter instantaneously.

But rather than installing a second barrel or doubling its thickness, both of which increase the size of the movement, Patek instead reduced the diameter of the barrel arbor, thereby increasing the coils of the mainspring. Further, a patented notch was added to the arbor to reduce the tension exerted by the spring hook while the mainspring is being wound.

Secondly, with an increased frequency, the efficiency of energy transmission in the Patek Philippe Replica escapement would, in turn, decline. To avoid this, the entire oscillator was replaced by an escape wheel, lever (Pulsomax), balance wheel (GyromaxSi) and hairspring (Spiromax) made of Silinvar, known collectively as the Oscillomax.

When the chronograph is engaged, an intermediate lever shifts the clutch wheel horizontally until it meshes with the chronograph seconds wheel, causing the seconds counter to start ticking. In the CH 29-535 PS 1/10 movement, it is the drive wheel on the original chronograph that powers the 1/10th second mechanism.

To avoid this, Patek Philippe Replica Swiss Movement designed a special driving wheel for the 1/10th second mechanism that is made up of two stacked gears – a lower wheel with conventional spokes and an upper wheel with flexible spokes.

As with a traditional chronograph, this drive wheel is in constant contact with a clutch wheel, which is characterized by serpentine spokes. When the chronograph is activated, the clutch wheel pivots to engage a pinion in the middle. With a diameter of just 1.469 mm, this pinion was micro-toothed with 136 teeth, making one revolution in 12 seconds.

Best Patek Philippe Replica developed two patented mechanisms to ensure a smooth and constant engagement in the event of a shock. The first is a shock absorber hook that would secure the clutch lever in its position as the chronograph runs. It engages with hooks on a shock absorber cap over the column wheel. The second is a “Pendulum” shock absorber lever with an integrated pre-tensioning spring.

A Patented Concentric Display

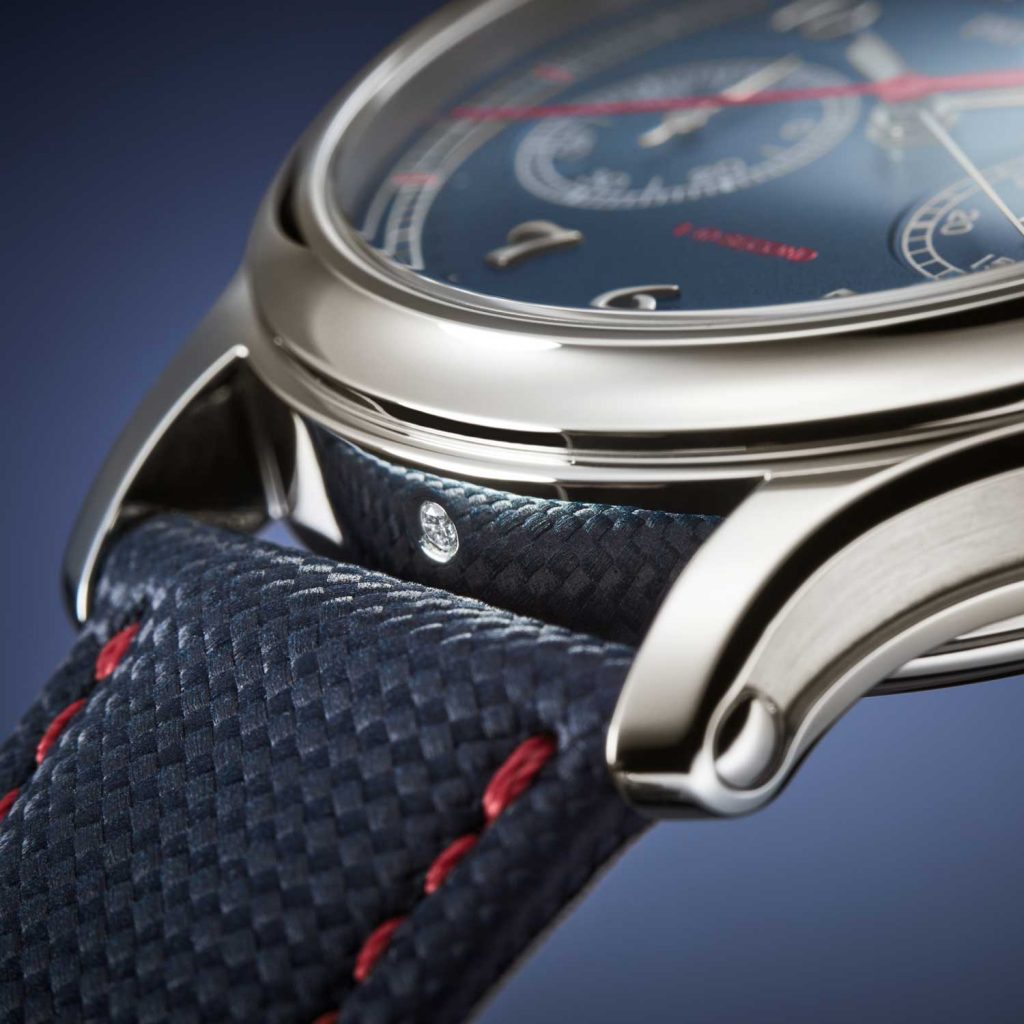

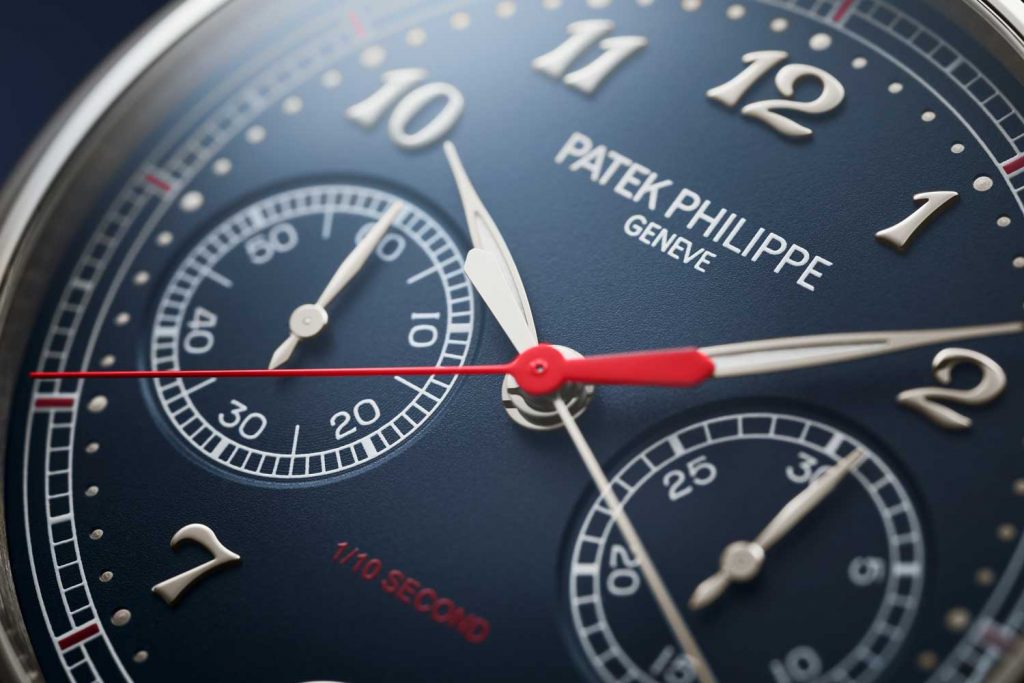

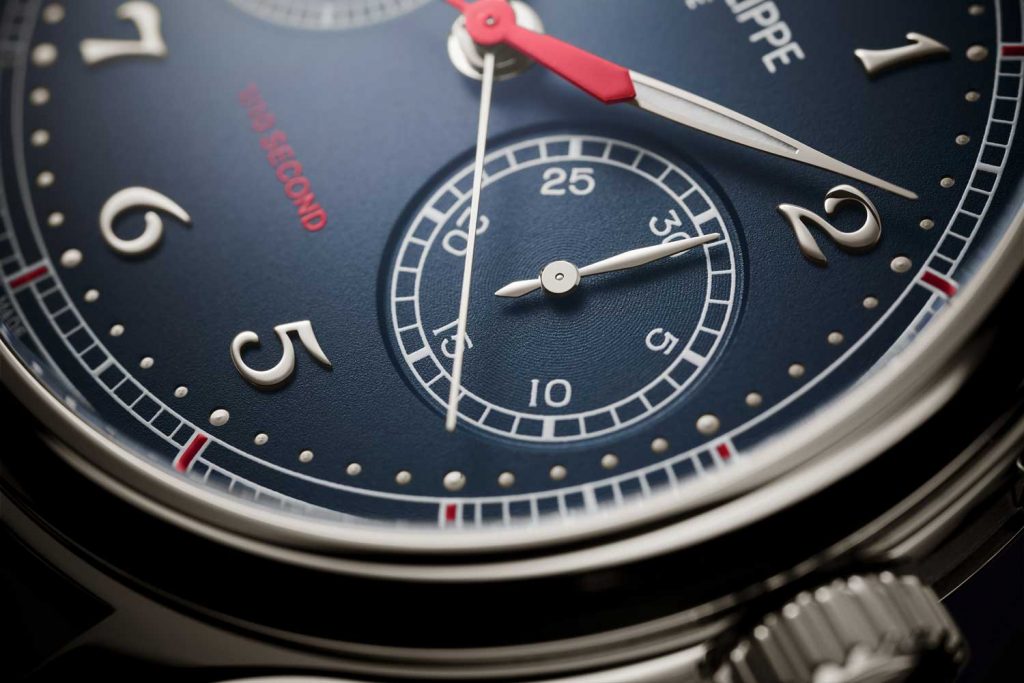

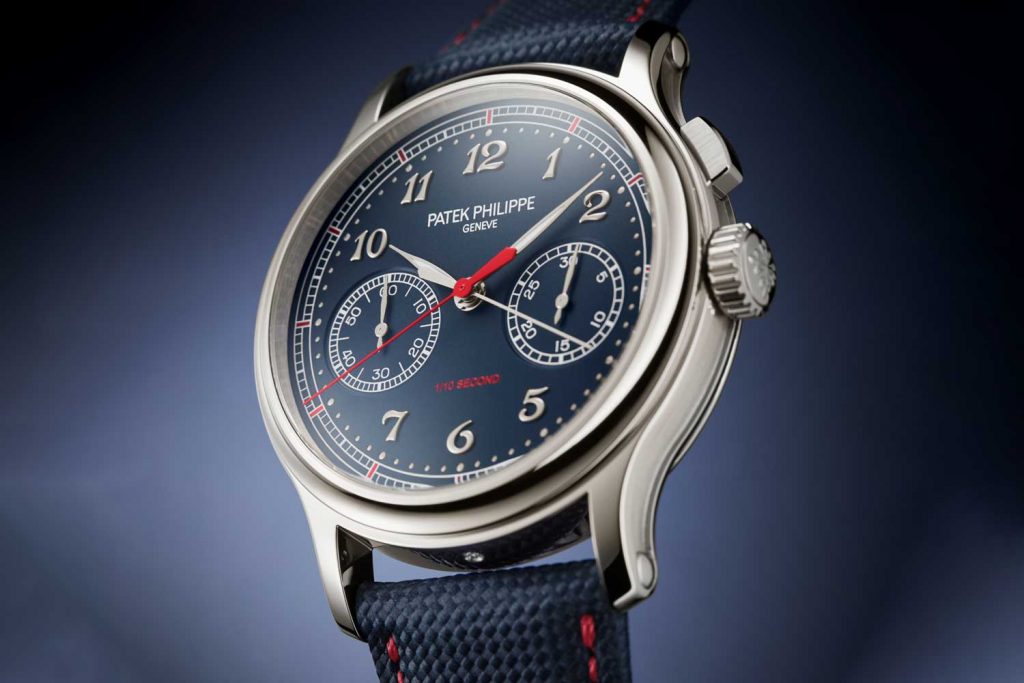

The AAA Patek Philippe Replica Calibre CH 29-535 PS 1/10 is housed in a Calatrava case made of platinum, as denoted by a diamond set into the case band at six o’clock. It measures 41 mm wide but, remarkably, just 13.68 mm high. It is paired with a blue lacquered dial that displays both the chronograph seconds and 1/10th seconds concentrically, with an outer 12-sector railway track scale subdivided into tenths.

The first is a primer coating that improves the adhesion of lacquer on a silicon oxide surface, which consequently necessitates a special process, the High Quality Patek Philippe Replica subject of a second patent, for joining the lacquered hand to the brass pipe of the hand. Advancing five times faster than the elapsed seconds hand, the 1/10th seconds can be read easily by the number of elapsed tenths of a second departing from the last red marker.
